<kat no. 14>
This release consists of audio recordings made using circuits based on ICs (integrated circuits or ‘chips’) from the UM series. These DIY EMIs (electronic musical instruments) come from physical remixes, and are bent by design (thanks to Rob Hordijk). The demonstration schematics found in the official datasheets were built, bent, remixed, extended, multiplied and fabricated to facilitate play with a few parameters.
This release shows music composed on computer and expressed as hardware instead of recording. The circuit composition can be viewed as a form of score. The musical instrument voice is technological. The parameters available are limited. Complex frequency output can be made with both UM66 & UM3561 in spite of their obsolescence.

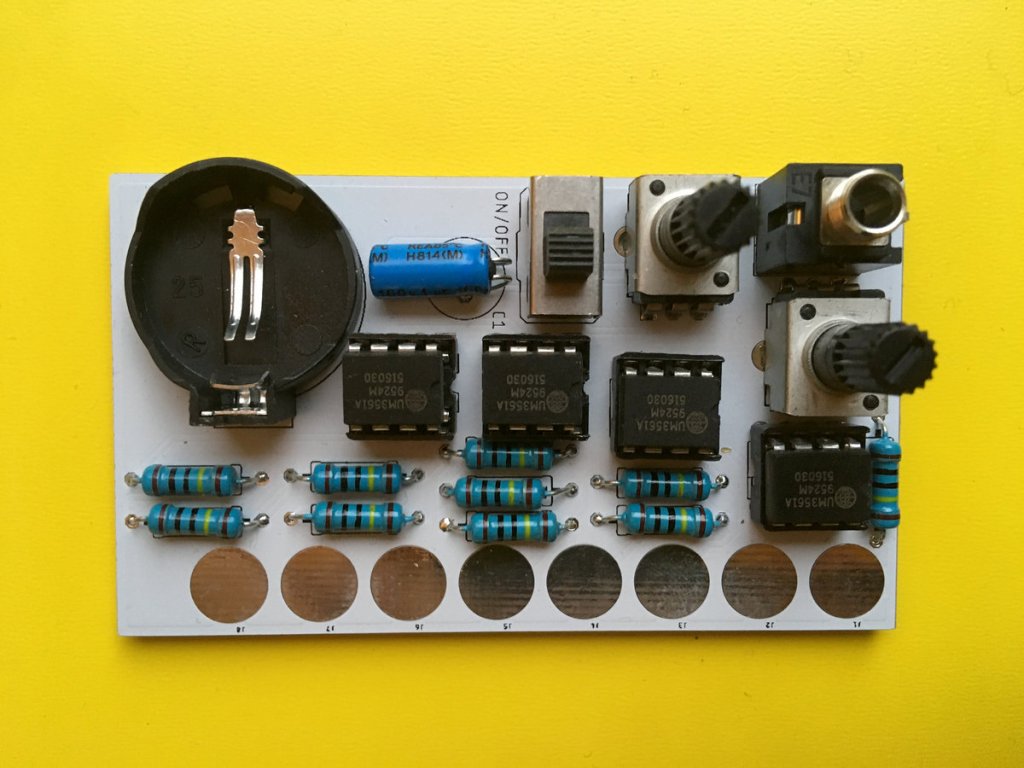

The UM3561 chip was designed to produce sound effects:
The chip used in this circuit produces an emergency siren type sound.
The UM3561 is used four times. They not synchronised.
This DIY EMI has potentiometers to control voltage starve & volume as well as an on/off switch and two touch-pads per IC so that skin contacting the PCB changes resistance and timing/frequency.

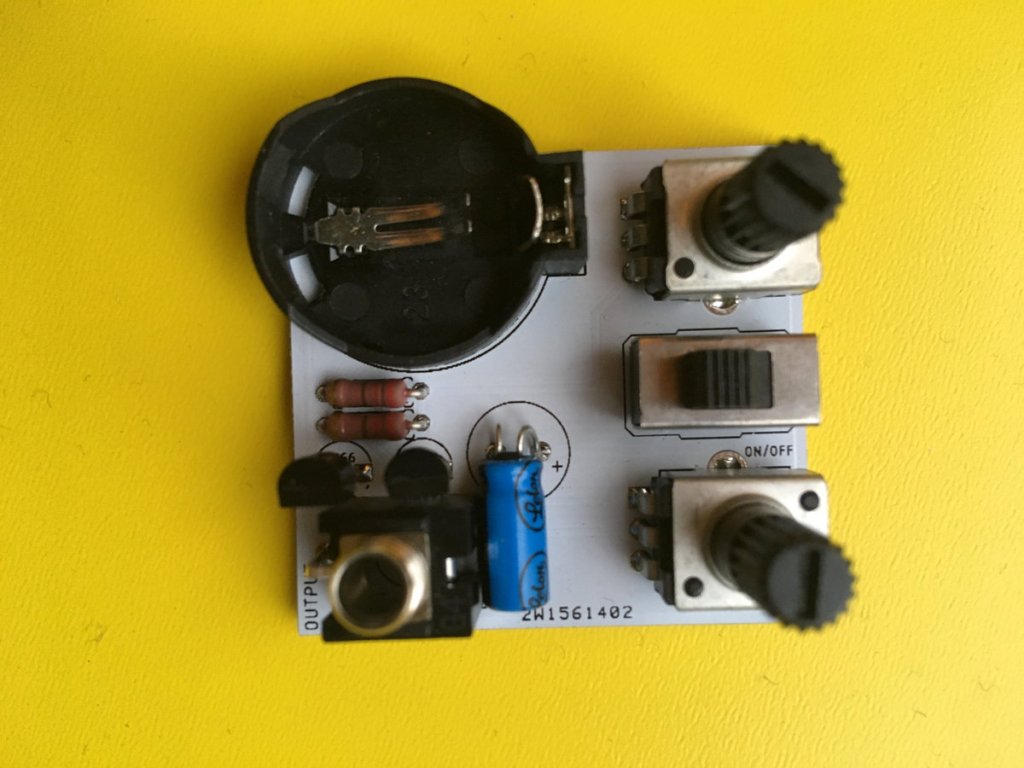

The UM66 chip was designed to play popular monophonic melodies:
The chip used in this circuit plays Für Elise.
The UM66 is used two times. They not synchronised.
This DIY EMI has potentiometers to control voltage starve & volume as well as a switch to change the ‘bent’ character of the sound.
These DIY EMIs require a 3v CR2032 battery for power. The output is a mono mini jack (3.5mm).
Play with rhythm, melody & noise.
Battery not included.
MAKE FILES:
UM66
github.com/bjc01/UM66
hackaday.io/project/175695-um66
UM3561
github.com/bjc01/UM3561
hackaday.io/project/175699-um3561
credits
releases February 5, 2021
license
all rights reserved
barry joseph cullen
